NavVis Can SLAM Point Clouds to Remove Artifacts ... the Fringe Benefits Points No More Scattered Beams


NavVis has new software release for the NavVis M6 Indoor Mobile Mapping System (IMMS) that automatically detects and removes dynamic objects and object fringe points from point clouds during the post-processing of scan data.

Fringe points and dynamic objects are two common types of point cloud artifacts that affect all 3D laser scanning devices. Fringe points arise when a laser beam hits the edge of an object as well as its background. This scattered beam ultimately appears as a so-called fringe around the edge of the object in the point cloud. The second type of point cloud artifact results when dynamic objects, such as humans walking through a scan, are captured by the laser scanner and then appear as artifacts in the point cloud.

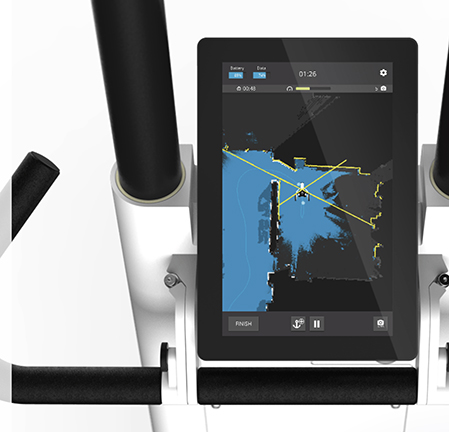

The NavVis M6 IMMS is a simultaneous localization and mapping (SLAM)-based system that uses laser scanners to capture a high volume of measurement points of an environment. As SLAM-based mobile mapping systems move through the environment while scanning it, objects are observed from multiple different angles and positions. With the latest software update, the algorithms applied during the post-processing of scan data use those multiple observations to detect whether measurement points actually exist in the physical space. If it is determined that the point does not exist and is instead resulting from the laser beam hitting an edge or an object moving through the space, this point is automatically removed.

The result is a much cleaner, crisper point cloud that requires less clean up time in point cloud editing software and that is easier to use for applications, such as BIM modeling.

Executive Comment

Georg Schroth, NavVis co-founder and CTO, said the company has been working to develop a precise SLAM technology that significantly improves the quality of point clouds captured by a mobile device. As this latest software feature shows, SLAM offers a great deal of potential for laser scanning and AEC professionals who are seeking technology that speeds up the capture of data as well as delivers high quality point clouds. The company sees a lot of potential in this technology and looks forward to sharing future innovations. (Mr. Schroth explains the technology at this direct link...)
