Modular Devices, Inc. announces their new product releases as follows:
Model 3715: “The MINI” is a 2 Watt DC-DC Converter
- 28 VDC input ( 12-50VDC continuous, 15-50VDC Full Power)
- Available in Single and Dual voltage outputs
- 0.8x0.975 Inch footprint
- Higher efficiency than competitive units
Model 3716: “The FLATSO” is a 6 Watt DC-DC Converter
- 28 VDC input ( 12-50VDC continuous, 15-50VDC Full Power)
- Available in Single and Dual voltage outputs
- 1.080x1.080 Inch footprint
- Higher efficiency than competitive units
Model 3717: 2 Watt DC-DC Converter
- For Vehicle and UAV applications
- Low 9-50VDC Input
- Available in Single and Dual voltage outputs
- 0.8x0.975 Inch footprint
Model 3718: 6 Watt DC-DC Converter
- For Vehicle and UAV applications
- Low 9-50VDC Input
- Available in Single and Dual voltage outputs
- 1.080x1.080 Inch footprint

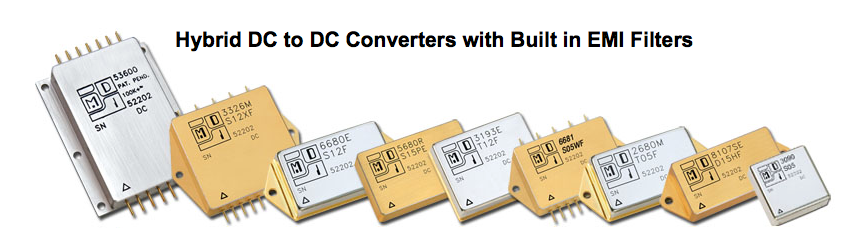

Series Features:
- Specifically designed for demanding military and aerospace applications
- High Efficiency compared to competitors
- No External components required
- Fully Isolated design
- Magnetic feedback (No Optocouplers)
- Input Ripple Current Inductor
- Output Common Mode Spike Filter
- Inhibit-Not Function
- Power on Soft Start Short Circuit Protection
Models available in Industrial, Military and Extended Temp grades in either Solder Sealed or SeamWelded Flangeless PCB mount packages.
Use with MODEL 3723 EMI Filter for MIL-STD 461 requirements.
