...the broadband frequency range of 1.0 to 40.0GHz in a compact package. KRYTAR’s new power divider offers the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range.

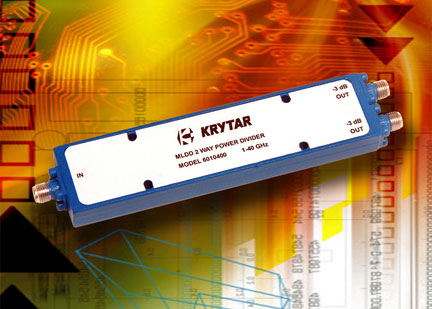

KRYTAR’s technological advances provide excellent operating performance of this new 2-way unit. Model 6010400 covers the frequency range from 1.0 to 40.0GHz with 14dB Isolation and ±0.60dB Amplitude Tracking. The 2-way divider exhibits Insertion Loss of <2.5dB across the full frequency range. Maximum Input VSWR is 1.85 from 1 to 20GHz and 1.85 from 20 to 40GHz. Maximum Output VSWR is 1.50 from 1 to 20GHz and 1.70 from 20 to 40GHz. Phase Tracking is ±7 degrees from 1 to 20GHz and ±14 degrees from 20 to 40GHz.

The power divider is a compact package measuring just 4.15 inches (L) x 1.00 inches (W) x 0.43 inches (H), weighs only 3-ounces, and comes with standard 2.4-mm coaxial female connectors. Model 6010400K includes 2.92-mm “K” female connectors. This new 2-way power divider lends itself to emerging wireless ultra-broadband designs and many test and measurement applications. The 2-way power divider can be manufactured to meet military specifications.
