Satnews Daily
June 13th, 2014

AVCOM Of Virginia—Shorter In Size With No Performance Sacrifice (SatBroadcasting™—Equipment)

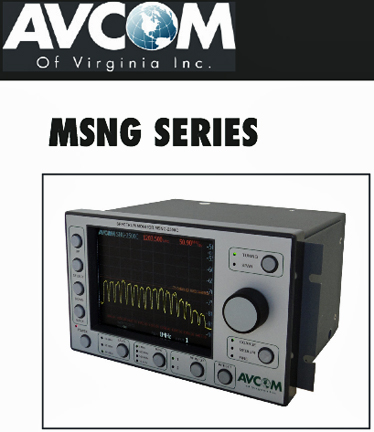

[SatNews] AVCOM is introducing their MSNG-2500C (Mini Rack Mount Spectrum Analyzer).

The trends in electronic news gathering (ENG) are constantly changing. The trucks used in this industry are changing as well. Today’s SNG/ENG environment calls for faster, lighter, and less expensive vehicles to perform satellite operations. Traditional full size vans, Sprinters, and other large trucks are now being replaced with SUVs, minivans, and even small hybrid station wagons. This puts additional pressure on the engineer to be able to use all of the gear needed to effectively do the job. This means the equipment must be updated and modified as well to meet the demands of today’s field engineers. AVCOM’s MSNG Series solves those needs.

The MSNG performs all the same tasks as its predecessor, the industry standard SNG, but at more than 60 percent shorter in size. The MSNG can be ordered with one or two inputs and LNB power as an option if needed.

The MSNG is designed for the measurement of communications and broadcast carriers, making uplink, downlink, L-band carriers, IF, and 10MHz reference signals easy to monitor and measure. The MSNG provides excellent frequency and amplitude accuracy along with RBW selection from 10kHz to 1MHz. This is required to allow viewing and monitoring of small Telemetry, Tracking, Command Systems (TT&C), and data carriers found in many satellite communications markets today. The front panel can control Frequency & Span with settings for Fine, Medium, and Coarse to allow the operator to dial into the carrier and control the display as needed. The use of persistence, averaging, or waterfall tools allow periodic signals like TDMA or noisy carriers to be more easily detected.

The SNG can be monitored and controlled locally from the front panel and remotely, using the Avcom Remote Control Software via serial port or Ethernet. The Remote Control Software has an intuitive user interface that is easy to use with no special training required. It allows remote monitoring and control from your network or over the internet.

Features include screen shot capture record - ing, SNMP for alarm/monitoring, cross-polling, markers, and Automated Data Acquisition (DAQ) with tolerance comparison, and integrated email alerts to name a few. Up to twelve windows can be displayed at one time. The Remote Control Software is available for Windows, Mac, and Linux.

For further information, please visit http://www.avcomofva.com/
