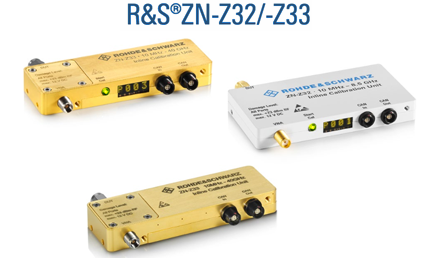

Unlike conventional automatic network analyzer calibration units, the new R&S ZN-Z32/33 inline calibration units from Rohde & Schwarz are permanently connected to the test setup. — this makes them an ideal solution for test setups that require frequent re-calibration, especially where the test setup is inaccessible.
The new inline calibration units are the only solution available for testing in TVAC chambers where it is not possible to access the test set under vacuum conditions. After a basic calibration, carried out under ambient environmental conditions, the test set components are brought inside the TVAC before the vacuum is applied and testing starts. Once the vacuum is applied, re-calibration is required after every temperature change due to thermal drift effects. With the calibration units in place and linked by a CAN bus, this re-calibration can be easily performed.
For multiport applications that are typical in production testing, accuracy and reproducability suffer due to limited phase stability when cables are moved. Repeated calibration with conventional equipment involves extra effort and wastes test time. In contrast, the R&S ZN-Z32/33 units allow calibration of a high number of test ports via a single keystroke in the control software tool, cutting re-calibration time down to seconds. Users benefit from dramatically increased efficiency on the production line.
The R&S ZN-Z32 covers the frequency range from 10 MHz to 8.5 GHz and can be used in ambient conditions from +5 °C to +40 °C. The R&S ZN-Z33 covers the 10 MHz to 40 GHz range in ambient conditions from +5 °C to +40 °C or in TVAC conditions from –30 °C to +80 °C. The calibration units are controlled by an R&S ZN-Z30 CAN bus controller, which supports up to 48 units. With multiple controllers, a virtually unlimited number of inline calibration units, and therefore test ports, are supported. The R&S ZN-Z3ASW application software guides the operator through the system configuration and the calibration process.
The new R&S ZV-Z32/-Z33 inline calibration units, R&S ZN-Z30 CAN bus controller and R&S ZN-Z3ASW software are now available from Rohde & Schwarz and can be used with every R&S ZNB(T), R&S ZVA and R&S ZVT vector network analyzer.
