...3dB of coupling over the broadband frequency range of 1.4 to 18.0GHz and 1.7 to 18.0GHz in single compact packages. KRYTAR hybrid couplers are designed to perform many functions, including splitting and combining signals in amplifiers, switching circuits, and antenna beam-forming networks used in a wide range of commercial and military applications. KRYTAR’s new hybrid coupler Model 3014180 delivers excellent versatility from 1.4 to 18.0GHz with excellent phase and amplitude matching. Typical specifications include Amplitude Imbalance: ±1.0dB; Phase Imbalance is ±10 degrees; Isolation is >12dB; Maximum VSWR: 1.70; Insertion Loss is <2.6dB.
Model 3017180 also delivers excellent versatility from 1.7 to 18.0GHz with excellent phase and amplitude matching. Typical specifications include Amplitude Imbalance: ±1.5 dB; Phase Imbalance is ±10 degrees; Isolation is >15dB; Maximum VSWR: 1.75; Insertion Loss is <3.2dB.
KRYTAR’s new hybrid couplers join an expanding family of 90 degree couplers offering wide frequency coverage in single packages that provide superior low insertion loss, high directivity and tight coupling. These new hybrid couplers lends themselves to emerging wireless broadband designs and many test and measurement applications. The new couplers can be also be manufactured to meet military specifications.

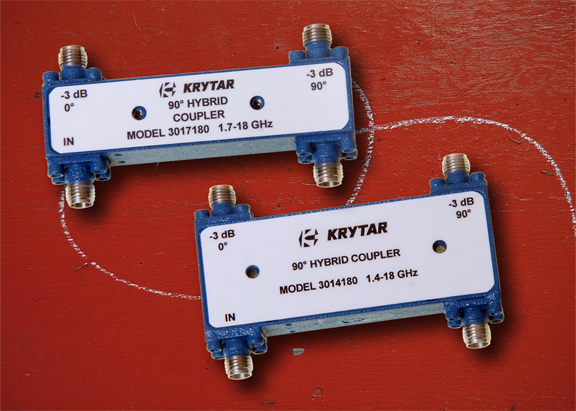

Each of the hybrid couplers handle 20 Watts of average power and 3kW of peak power with an operating temperature of -54°C to +85°C. Model 3014180 measures only 2.62 inches (L) x 1.00 inches (W) x 0.40 inches (H), and weighs just 2.0 ounces. Model 3017180 measures 2.60 inches (L) x 0.625 inches (W) x 0.50 inches (H), and weighs just 1.6 ounces. SMA female connectors are standard and N-type female connectors are optional on both models. Operating temperature is -54°C to +85°C. These new couplers are available from stock to 30 days, ARO.
